SKF NU 1011 ECMR/HC5C4VE104

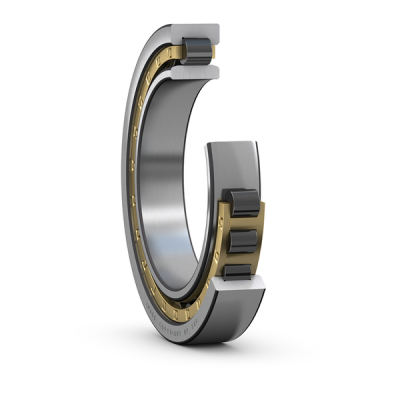

Hybrid ceramic single row cylindrical roller bearing, NU design
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
55.0 mm
Bore diameter
D
90.0 mm
Outside diameter
B
18.0 mm
Width
D1
79.2 mm
Shoulder diameter outer ring
F
64.5 mm
Raceway diameter inner ring
s
0.5 mm
Permissible axial displacement from the normal position of one bearing ring relative to the other
r1,2
1.1 mm
Chamfer dimension
r3,4
1.0 mm
Chamfer dimension
mass
0.378 kg
Product net weight
