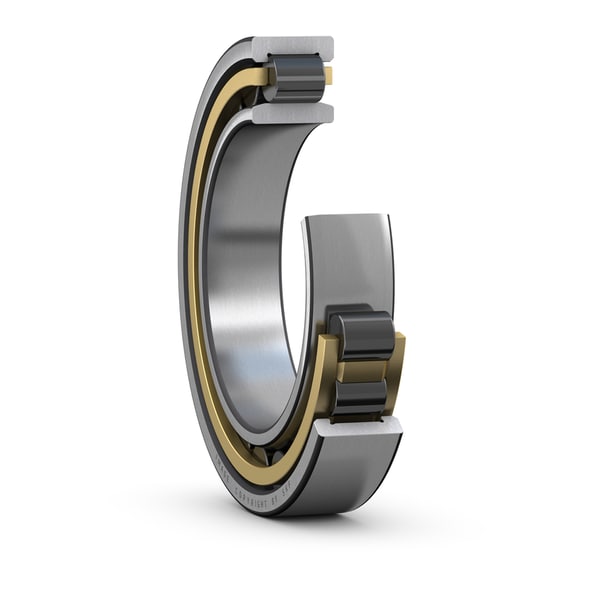

SKF NU 1014 ECMR/HC5C4
Hybrid ceramic single row cylindrical roller bearing, NU design
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
70.0 mm
Bore diameter
D
110.0 mm
Outside diameter
B
20.0 mm
Width
D1
97.5 mm
Shoulder diameter outer ring
F
79.5 mm
Raceway diameter inner ring
s
1.3 mm
Permissible axial displacement from the normal position of one bearing ring relative to the other
r1,2
1.1 mm
Chamfer dimension
r3,4
1.0 mm
Chamfer dimension
mass
0.581 kg
Product net weight
