SKF NU 1018 ML

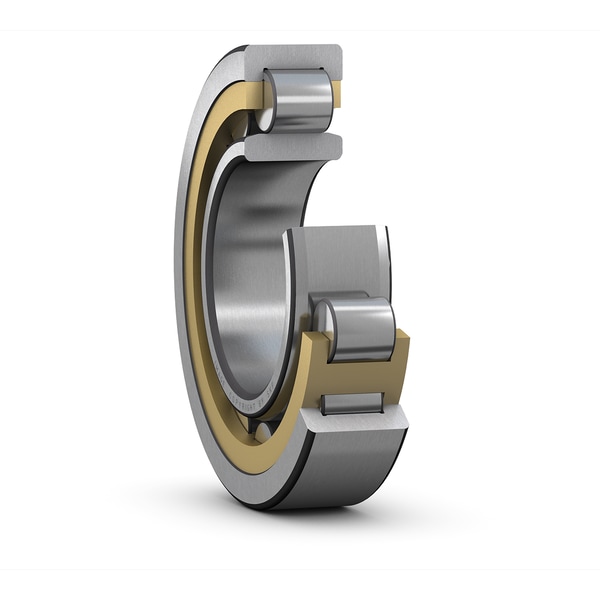

Single row cylindrical roller bearing, NU design
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
90.0 mm
Bore diameter
D
140.0 mm
Outside diameter
B
24.0 mm
Width
D1
122.1 mm
Shoulder diameter of outer ring
F
103.0 mm
Raceway diameter of inner ring
r1,2
1.5 mm
Chamfer dimension
r3,4
1.1 mm
Chamfer dimension
s
3.5 mm
Permissible axial displacement
mass
1.37 kg
Product net weight
