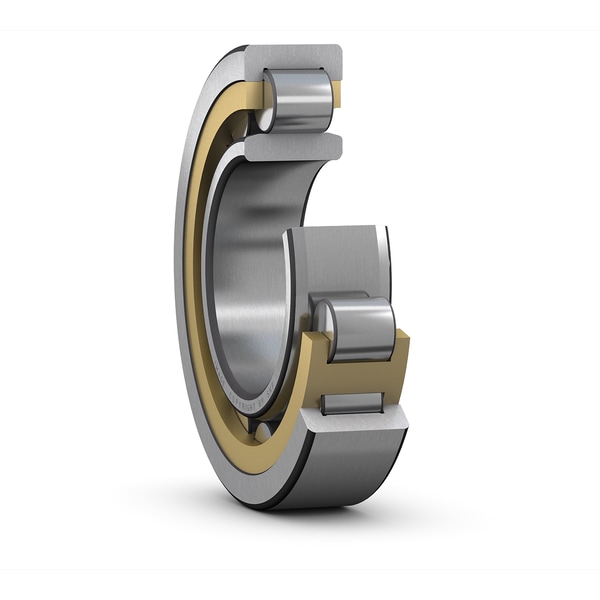

SKF NU 1028 ML
Single row cylindrical roller bearing, NU design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
140.0 mm
Bore diameter
D
210.0 mm
Outside diameter
B
33.0 mm
Width
D1
184.2 mm
Shoulder diameter of outer ring
F
158.0 mm
Raceway diameter of inner ring
r1,2
2.0 mm
Chamfer dimension
r3,4
1.1 mm
Chamfer dimension
s
4.4 mm
Permissible axial displacement
mass
4.07 kg
Product net weight
