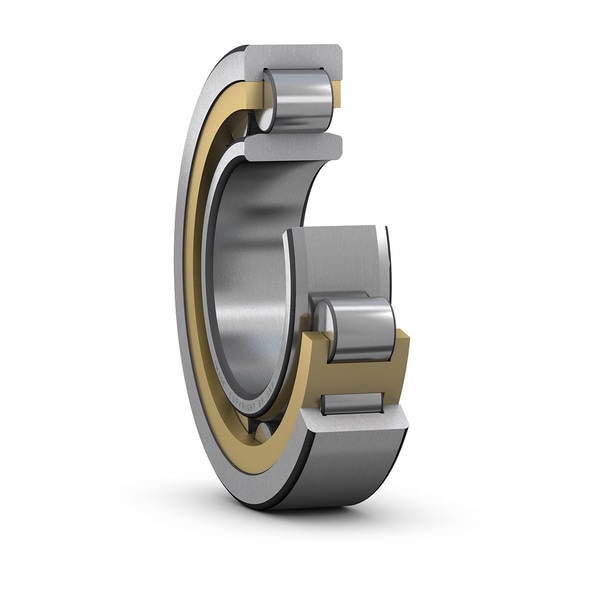

SKF NU 1030 ML
Single row cylindrical roller bearing, NU design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
150.0 mm
Bore diameter
D
225.0 mm
Outside diameter
B
35.0 mm
Width
D1
199.05 mm
Shoulder diameter of outer ring
F
169.5 mm
Raceway diameter of inner ring
r1,2
2.1 mm
Chamfer dimension
r3,4
1.5 mm
Chamfer dimension
s
4.9 mm
Permissible axial displacement
mass
4.91 kg
Product net weight
