SKF NU 1972 ECMP

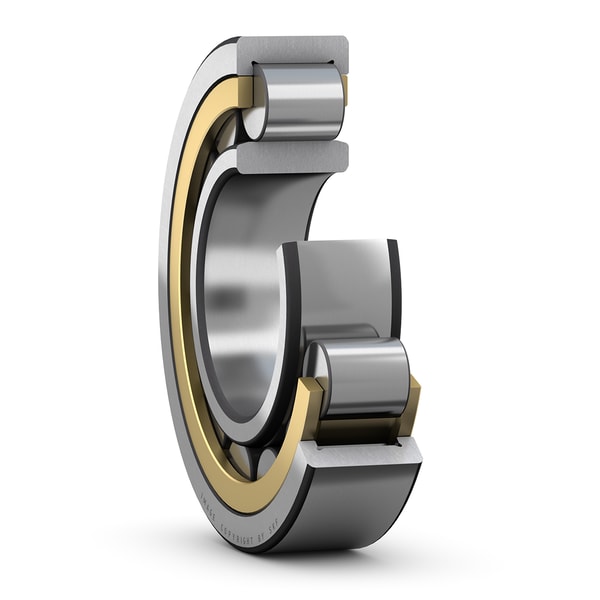

Single row cylindrical roller bearing, NU design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
360.0 mm
Bore diameter
D
480.0 mm
Outside diameter
B
56.0 mm
Width
D1
438.0 mm
Shoulder diameter of outer ring
F
387.5 mm
Raceway diameter of inner ring
r1,2
3.0 mm
Chamfer dimension
s
2.0 mm
Permissible axial displacement
