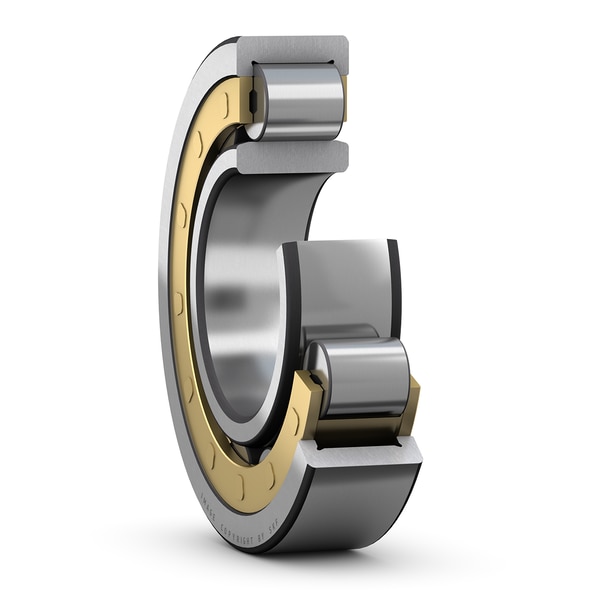

SKF NU 20/530 ECMA
Single row cylindrical roller bearing, NU design
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
530.0 mm
Bore diameter
D
780.0 mm
Outside diameter
B
145.0 mm
Width
D1
704.0 mm
Shoulder diameter of outer ring
F
591.0 mm
Raceway diameter of inner ring
r1,2
6.0 mm
Chamfer dimension
s
6.8 mm
Permissible axial displacement
mass
254.0 kg
Product net weight
