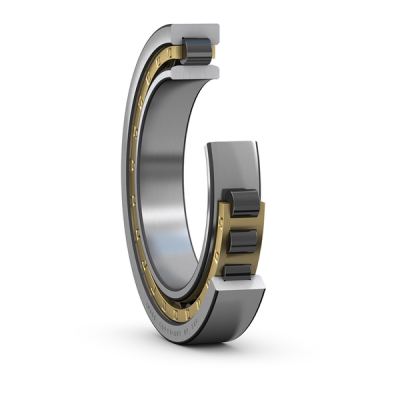

SKF NU 212 ECM/HC5C3
Hybrid ceramic single row cylindrical roller bearing, NU design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
60.0 mm
Bore diameter
D
110.0 mm
Outside diameter
B
22.0 mm
Width
D1
95.7 mm
Shoulder diameter outer ring
F
72.0 mm
Raceway diameter inner ring
s
1.4 mm
Permissible axial displacement from the normal position of one bearing ring relative to the other
r1,2
1.5 mm
Chamfer dimension
r3,4
1.5 mm
Chamfer dimension
mass
0.774 kg
Product net weight
