SKF NU 22/560 ECMA

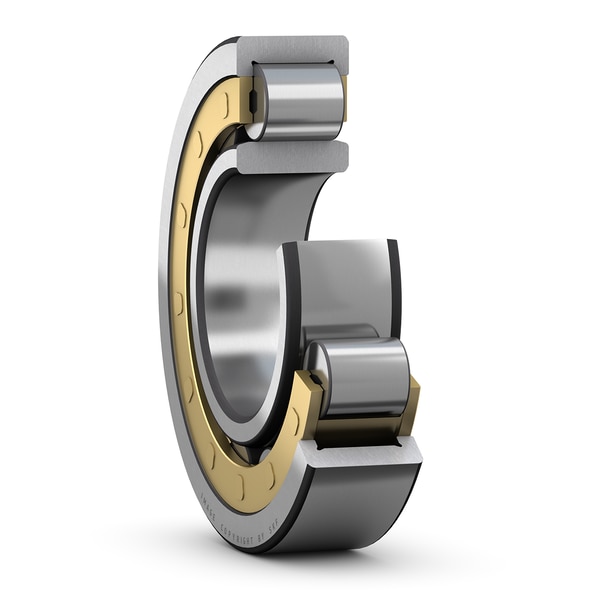

Single row cylindrical roller bearing, NU design
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
560.0 mm
Bore diameter
D
1030.0 mm
Outside diameter
B
272.0 mm
Width
D1
900.0 mm
Shoulder diameter of outer ring
F
664.0 mm
Raceway diameter of inner ring
r1,2
9.5 mm
Chamfer dimension
s
3.0 mm
Permissible axial displacement
mass
1086.0 kg
Product net weight
