SKF NU 2206 ECJ

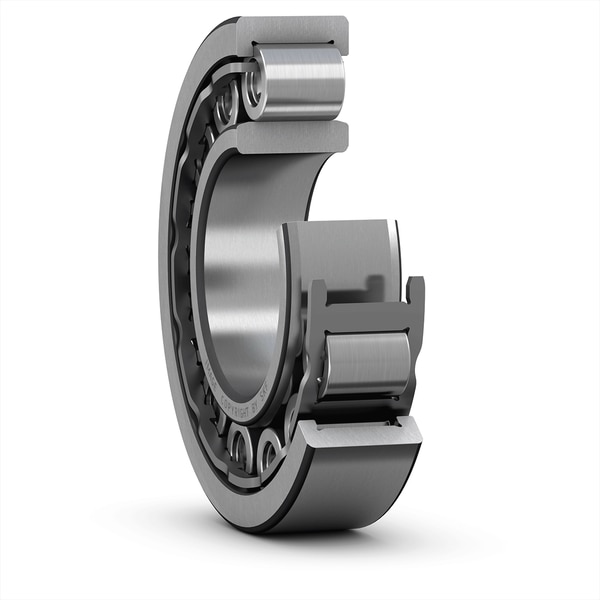

Single row cylindrical roller bearing, NU design
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
30.0 mm
Bore diameter
D
62.0 mm
Outside diameter
B
20.0 mm
Width
D1
51.95 mm
Shoulder diameter of outer ring
F
37.5 mm
Raceway diameter of inner ring
r1,2
1.0 mm
Chamfer dimension
r3,4
0.6 mm
Chamfer dimension
s
1.8 mm
Permissible axial displacement
mass
0.268 kg
Product net weight
