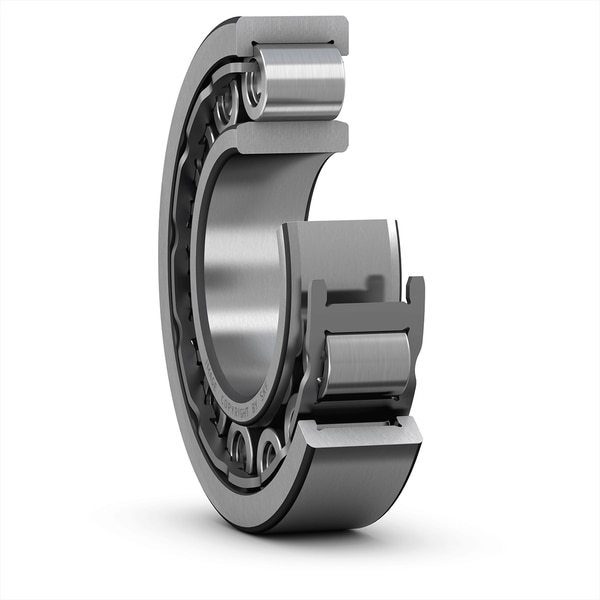

SKF NU 2209 ECJ
Single row cylindrical roller bearing, NU design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
45.0 mm
Bore diameter
D
85.0 mm
Outside diameter
B
23.0 mm
Width
D1
72.47 mm
Shoulder diameter of outer ring
F
54.5 mm
Raceway diameter of inner ring
r1,2
1.1 mm
Chamfer dimension
r3,4
1.1 mm
Chamfer dimension
s
1.7 mm
Permissible axial displacement
mass
0.541 kg
Product net weight
