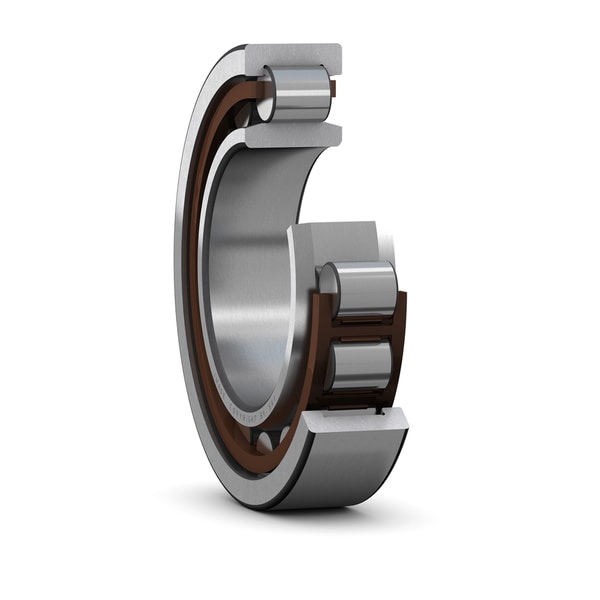

SKF NU 2210 ECPH
Single row cylindrical roller bearing, NU design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
50.0 mm
Bore diameter
D
90.0 mm
Outside diameter
B
23.0 mm
Width
D1
77.58 mm
Shoulder diameter of outer ring
F
59.5 mm
Raceway diameter of inner ring
r1,2
1.1 mm
Chamfer dimension
r3,4
1.1 mm
Chamfer dimension
s
1.5 mm
Permissible axial displacement
mass
0.563 kg
Product net weight
