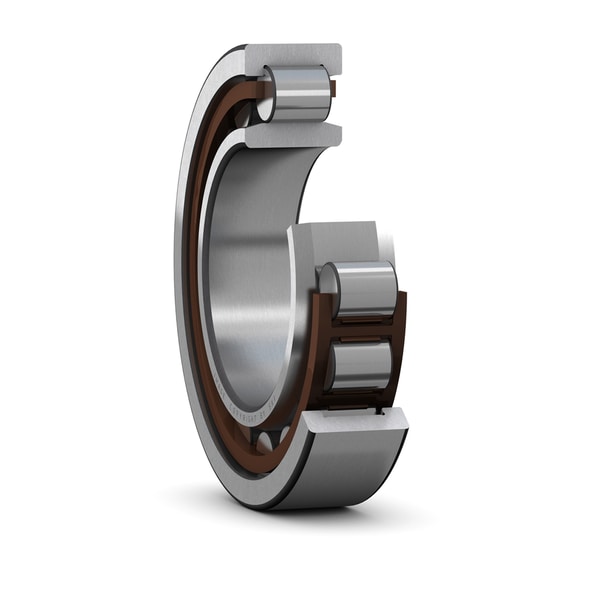

SKF NU 2212 ECPH
Single row cylindrical roller bearing, NU design
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
60.0 mm
Bore diameter
D
110.0 mm
Outside diameter
B
28.0 mm
Width
D1
95.1 mm
Shoulder diameter of outer ring
F
72.0 mm
Raceway diameter of inner ring
r1,2
1.5 mm
Chamfer dimension
r3,4
1.5 mm
Chamfer dimension
s
1.4 mm
Permissible axial displacement
mass
1.05 kg
Product net weight
