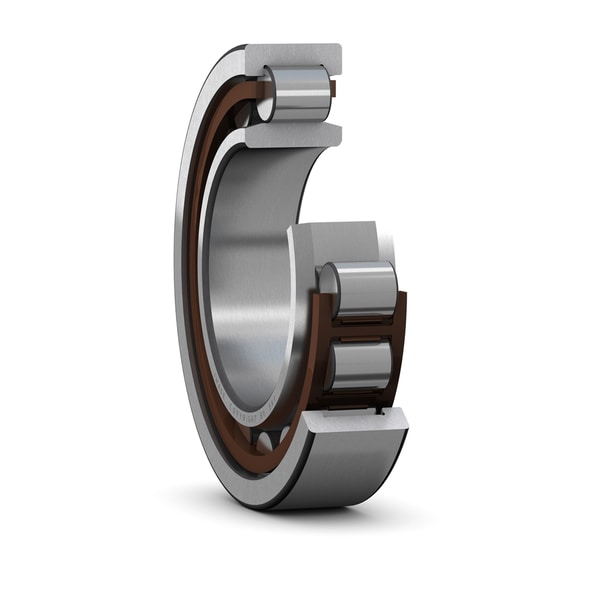

SKF NU 2217 ECPH
Single row cylindrical roller bearing, NU design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
85.0 mm
Bore diameter
D
150.0 mm
Outside diameter
B
36.0 mm
Width
D1
130.3 mm
Shoulder diameter of outer ring
F
100.5 mm
Raceway diameter of inner ring
r1,2
2.0 mm
Chamfer dimension
r3,4
2.0 mm
Chamfer dimension
s
2.0 mm
Permissible axial displacement
mass
2.49 kg
Product net weight
