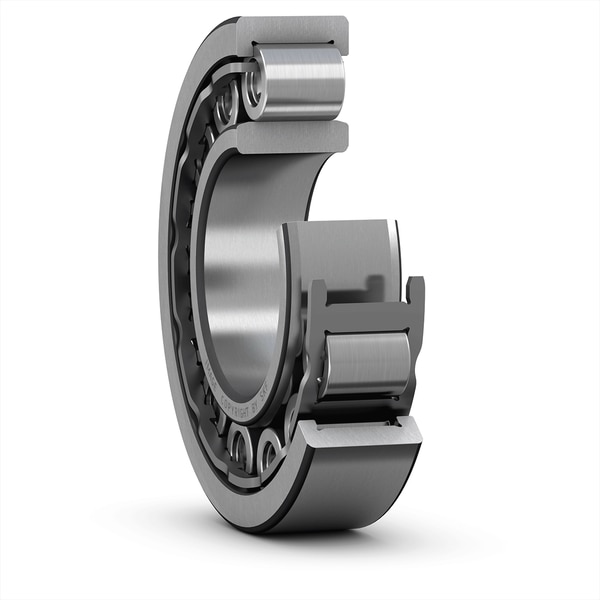

SKF NU 2224 ECJ
Single row cylindrical roller bearing, NU design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
120.0 mm
Bore diameter
D
215.0 mm
Outside diameter
B
58.0 mm
Width
D1
186.95 mm
Shoulder diameter of outer ring
F
143.5 mm
Raceway diameter of inner ring
r1,2
2.1 mm
Chamfer dimension
r3,4
2.1 mm
Chamfer dimension
s
3.8 mm
Permissible axial displacement
mass
8.51 kg
Product net weight
