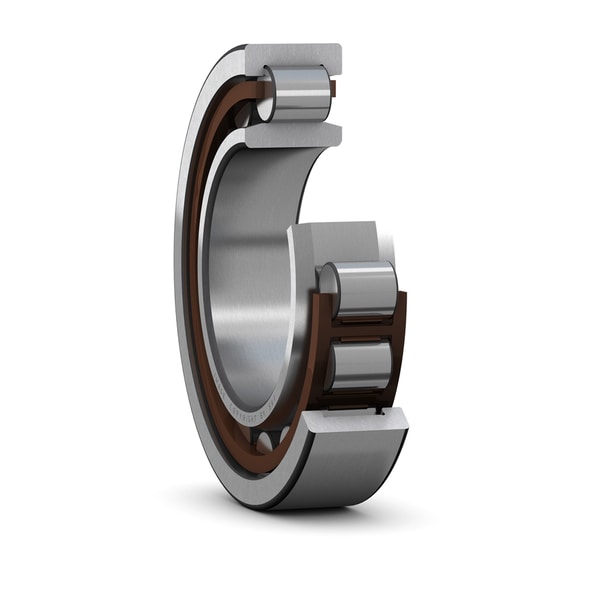

SKF NU 2226 ECP
Single row cylindrical roller bearing, NU design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
130.0 mm
Bore diameter
D
230.0 mm
Outside diameter
B
64.0 mm
Width
D1
200.25 mm
Shoulder diameter of outer ring
F
153.5 mm
Raceway diameter of inner ring
r1,2
3.0 mm
Chamfer dimension
r3,4
3.0 mm
Chamfer dimension
s
4.3 mm
Permissible axial displacement
mass
10.1 kg
Product net weight
