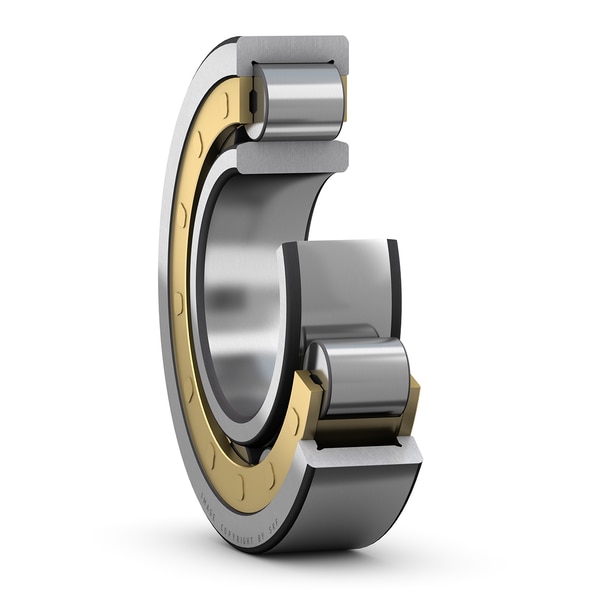

SKF NU 2256 ECMA
Single row cylindrical roller bearing, NU design
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
280.0 mm
Bore diameter
D
500.0 mm
Outside diameter
B
130.0 mm
Width
D1
433.0 mm
Shoulder diameter of outer ring
F
333.0 mm
Raceway diameter of inner ring
r1,2
5.0 mm
Chamfer dimension
s
10.2 mm
Permissible axial displacement
mass
115.0 kg
Product net weight
