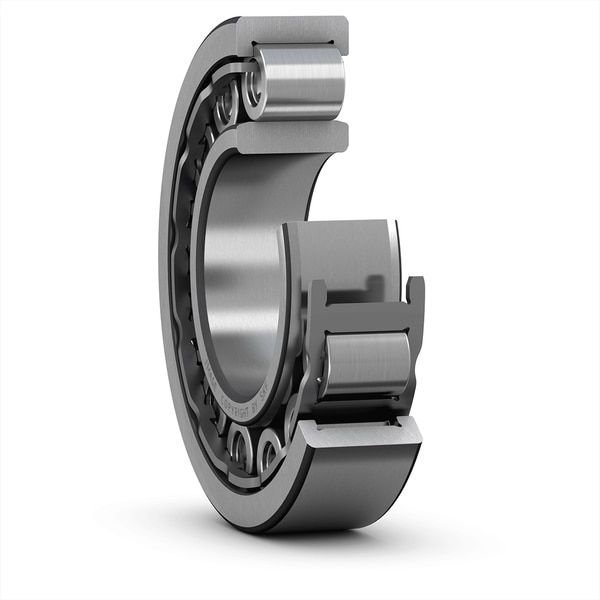

SKF NU 230 ECJ
Single row cylindrical roller bearing, NU design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
150.0 mm
Bore diameter
D
270.0 mm
Outside diameter
B
45.0 mm
Width
D1
232.35 mm
Shoulder diameter of outer ring
F
182.0 mm
Raceway diameter of inner ring
r1,2
3.0 mm
Chamfer dimension
r3,4
3.0 mm
Chamfer dimension
s
2.5 mm
Permissible axial displacement
mass
10.3 kg
Product net weight
