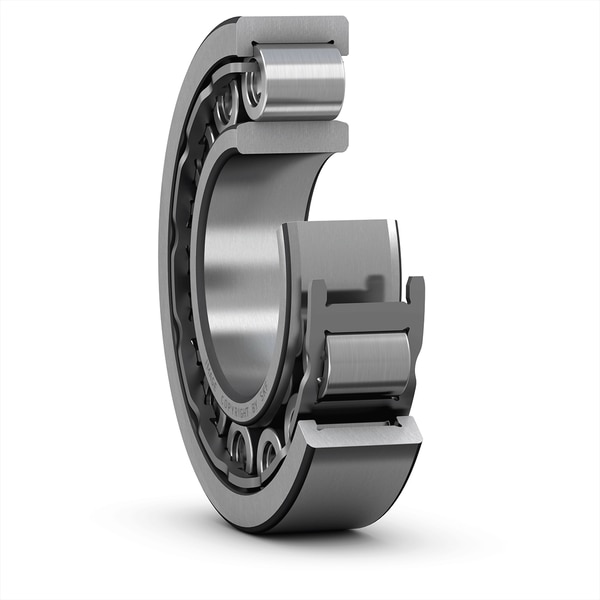

SKF NU 2315 ECJ
Single row cylindrical roller bearing, NU design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
75.0 mm
Bore diameter
D
160.0 mm
Outside diameter
B
55.0 mm
Width
D1
134.95 mm
Shoulder diameter of outer ring
F
95.0 mm
Raceway diameter of inner ring
r1,2
2.1 mm
Chamfer dimension
r3,4
2.1 mm
Chamfer dimension
s
4.8 mm
Permissible axial displacement
mass
4.95 kg
Product net weight
