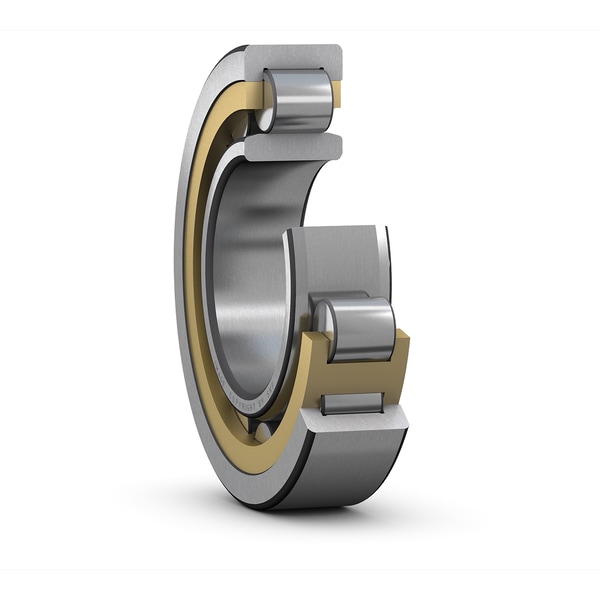

SKF NU 2316 ECML
Single row cylindrical roller bearing, NU design
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
80.0 mm
Bore diameter
D
170.0 mm
Outside diameter
B
58.0 mm
Width
D1
143.45 mm
Shoulder diameter of outer ring
F
101.0 mm
Raceway diameter of inner ring
r1,2
2.1 mm
Chamfer dimension
r3,4
2.1 mm
Chamfer dimension
s
5.1 mm
Permissible axial displacement
mass
6.44 kg
Product net weight
