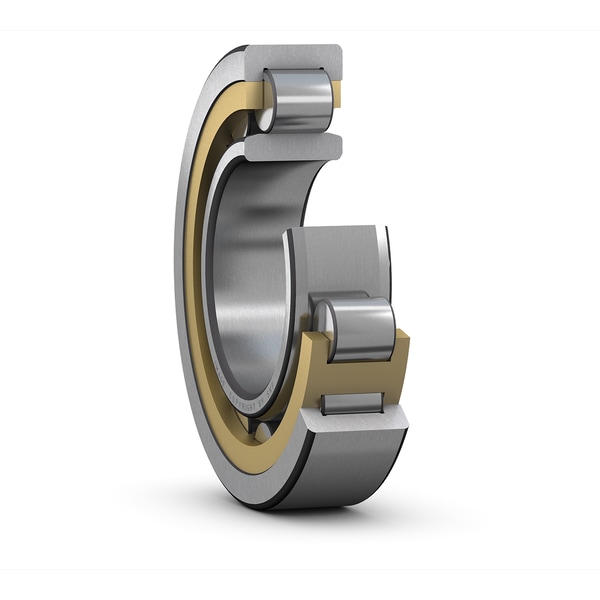

SKF NU 2328 ECML
Single row cylindrical roller bearing, NU design
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
140.0 mm
Bore diameter
D
300.0 mm
Outside diameter
B
102.0 mm
Width
D1
251.7 mm
Shoulder diameter of outer ring
F
180.0 mm
Raceway diameter of inner ring
r1,2
4.0 mm
Chamfer dimension
r3,4
4.0 mm
Chamfer dimension
s
9.7 mm
Permissible axial displacement
mass
35.9 kg
Product net weight
