SKF NU 2330 ECML

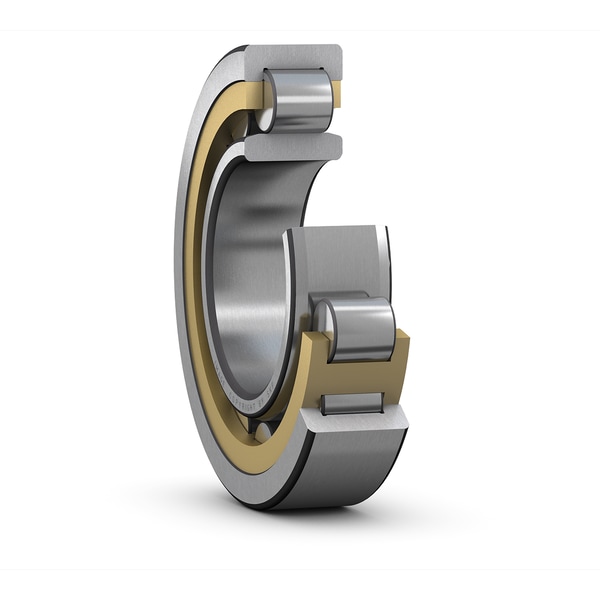

Single row cylindrical roller bearing, NU design
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
150.0 mm
Bore diameter
D
320.0 mm
Outside diameter
B
108.0 mm
Width
D1
269.8 mm
Shoulder diameter of outer ring
F
193.0 mm
Raceway diameter of inner ring
r1,2
4.0 mm
Chamfer dimension
r3,4
4.0 mm
Chamfer dimension
s
10.5 mm
Permissible axial displacement
mass
42.4 kg
Product net weight
