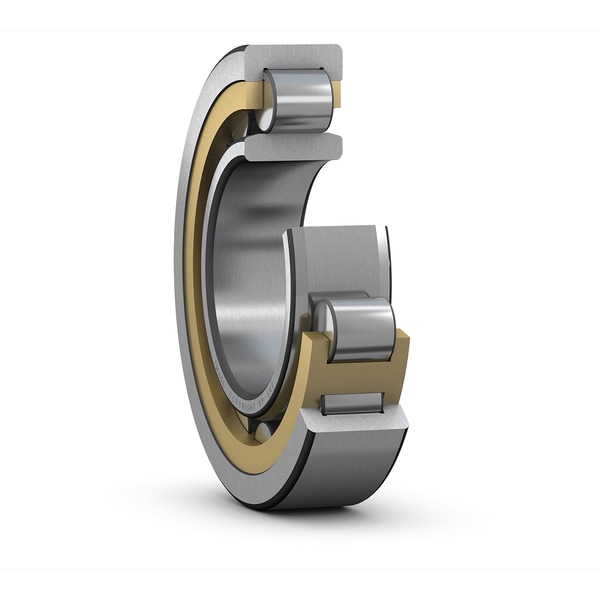

SKF NU 2344 ECML
Single row cylindrical roller bearing, NU design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
220.0 mm
Bore diameter
D
460.0 mm
Outside diameter
B
145.0 mm
Width
D1
391.0 mm
Shoulder diameter of outer ring
F
277.0 mm
Raceway diameter of inner ring
r1,2
5.0 mm
Chamfer dimension
s
10.4 mm
Permissible axial displacement
mass
124.0 kg
Product net weight
