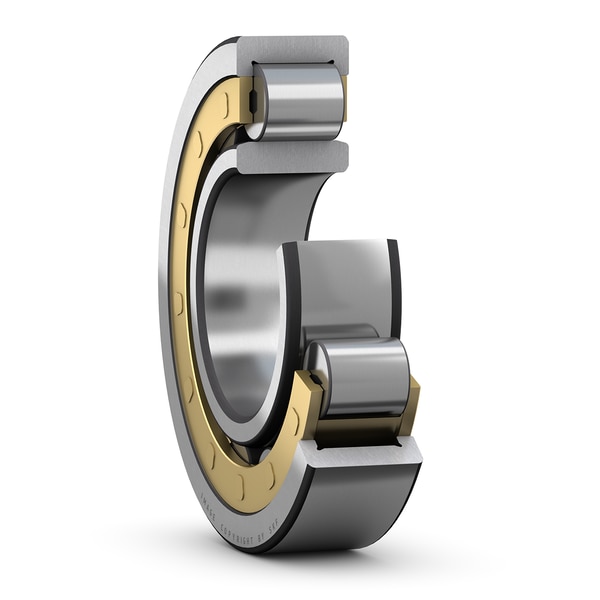

SKF NU 236 ECM
Single row cylindrical roller bearing, NU design
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
180.0 mm
Bore diameter
D
320.0 mm
Outside diameter
B
52.0 mm
Width
D1
277.48 mm
Shoulder diameter of outer ring
F
217.0 mm
Raceway diameter of inner ring
r1,2
4.0 mm
Chamfer dimension
r3,4
4.0 mm
Chamfer dimension
s
2.9 mm
Permissible axial displacement
mass
18.7 kg
Product net weight
