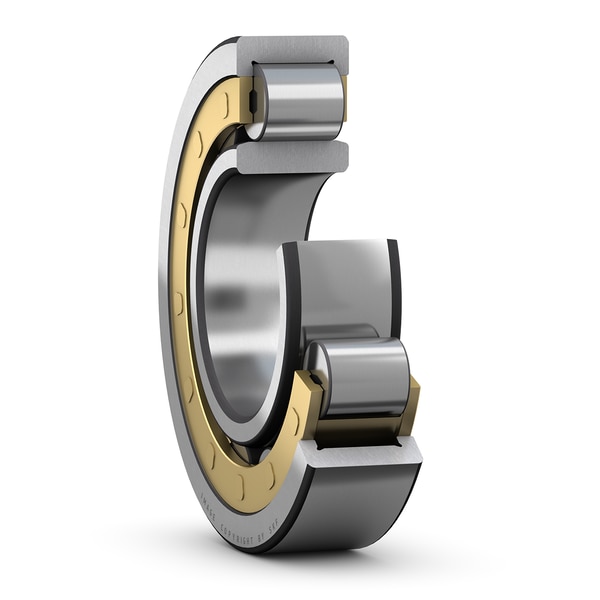

SKF NU 238 ECM
Single row cylindrical roller bearing, NU design
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
190.0 mm
Bore diameter
D
340.0 mm
Outside diameter
B
55.0 mm
Width
D1
293.6 mm
Shoulder diameter of outer ring
F
230.0 mm
Raceway diameter of inner ring
r1,2
4.0 mm
Chamfer dimension
r3,4
4.0 mm
Chamfer dimension
s
3.0 mm
Permissible axial displacement
mass
22.5 kg
Product net weight
