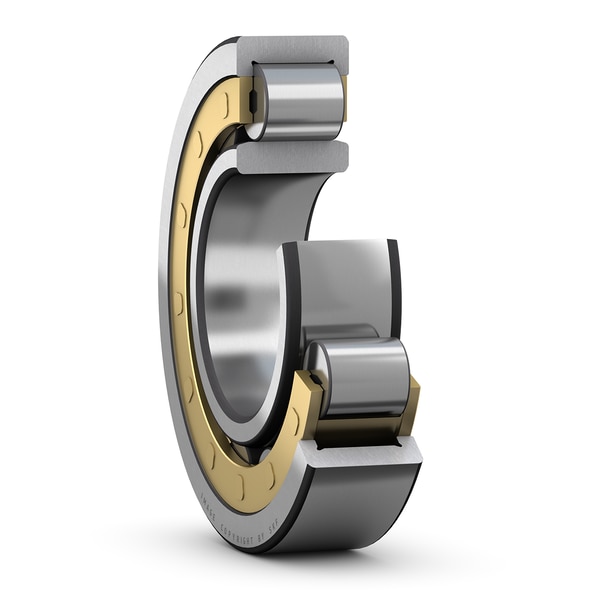

SKF NU 260 MA
Single row cylindrical roller bearing, NU design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
300.0 mm
Bore diameter
D
540.0 mm
Outside diameter
B
85.0 mm
Width
D1
451.0 mm
Shoulder diameter of outer ring
F
364.0 mm
Raceway diameter of inner ring
r1,2
5.0 mm
Chamfer dimension
s
4.8 mm
Permissible axial displacement
mass
89.5 kg
Product net weight
