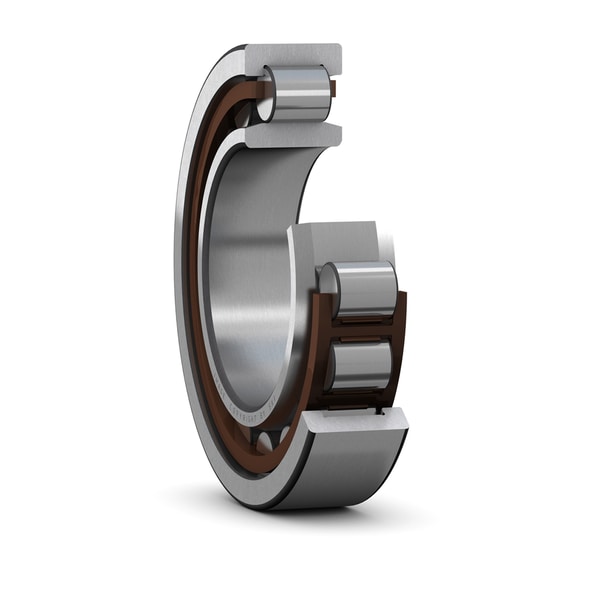

SKF NU 303 ECP
Single row cylindrical roller bearing, NU design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
17.0 mm
Bore diameter
D
47.0 mm
Outside diameter
B
14.0 mm
Width
D1
36.75 mm
Shoulder diameter of outer ring
F
24.2 mm
Raceway diameter of inner ring
r1,2
1.0 mm
Chamfer dimension
r3,4
0.6 mm
Chamfer dimension
s
1.0 mm
Permissible axial displacement
mass
0.115 kg
Product net weight
