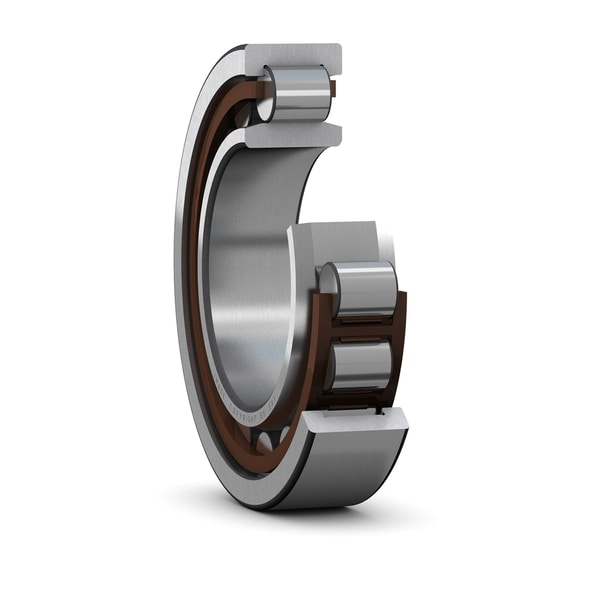

SKF NU 304 ECP
Single row cylindrical roller bearing, NU design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
20.0 mm
Bore diameter
D
52.0 mm
Outside diameter
B
15.0 mm
Width
D1
41.85 mm
Shoulder diameter of outer ring
F
27.5 mm
Raceway diameter of inner ring
r1,2
1.1 mm
Chamfer dimension
r3,4
0.6 mm
Chamfer dimension
s
0.9 mm
Permissible axial displacement
mass
0.148 kg
Product net weight
