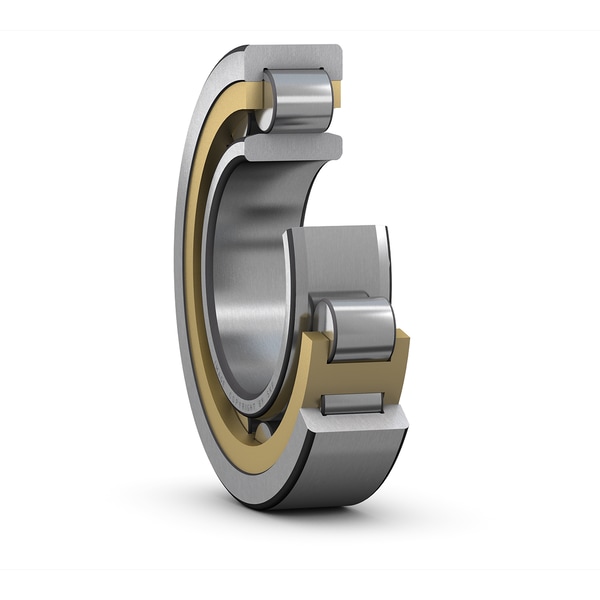

SKF NU 307 ECML
Single row cylindrical roller bearing, NU design
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
35.0 mm
Bore diameter
D
80.0 mm
Outside diameter
B
21.0 mm
Width
D1
66.3 mm
Shoulder diameter of outer ring
F
46.2 mm
Raceway diameter of inner ring
r1,2
1.5 mm
Chamfer dimension
r3,4
1.1 mm
Chamfer dimension
s
1.2 mm
Permissible axial displacement
mass
0.533 kg
Product net weight
