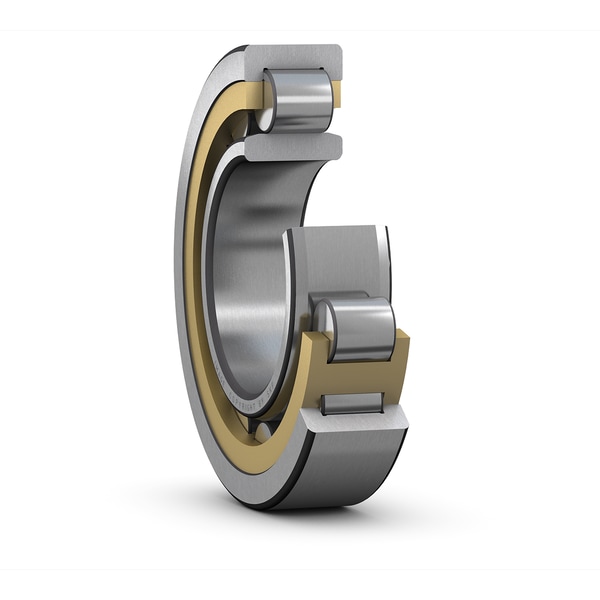

SKF NU 310 ECML
Single row cylindrical roller bearing, NU design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
50.0 mm
Bore diameter
D
110.0 mm
Outside diameter
B
27.0 mm
Width
D1
92.05 mm
Shoulder diameter of outer ring
F
65.0 mm
Raceway diameter of inner ring
r1,2
2.0 mm
Chamfer dimension
r3,4
2.0 mm
Chamfer dimension
s
1.9 mm
Permissible axial displacement
mass
1.28 kg
Product net weight
