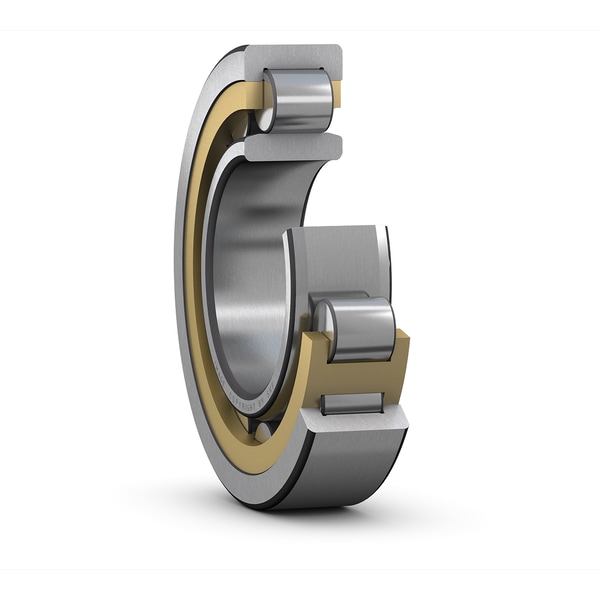

SKF NU 312 ECML
Single row cylindrical roller bearing, NU design
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
60.0 mm
Bore diameter
D
130.0 mm
Outside diameter
B
31.0 mm
Width
D1
109.2 mm
Shoulder diameter of outer ring
F
77.0 mm
Raceway diameter of inner ring
r1,2
2.1 mm
Chamfer dimension
r3,4
2.1 mm
Chamfer dimension
s
2.1 mm
Permissible axial displacement
mass
2.08 kg
Product net weight
