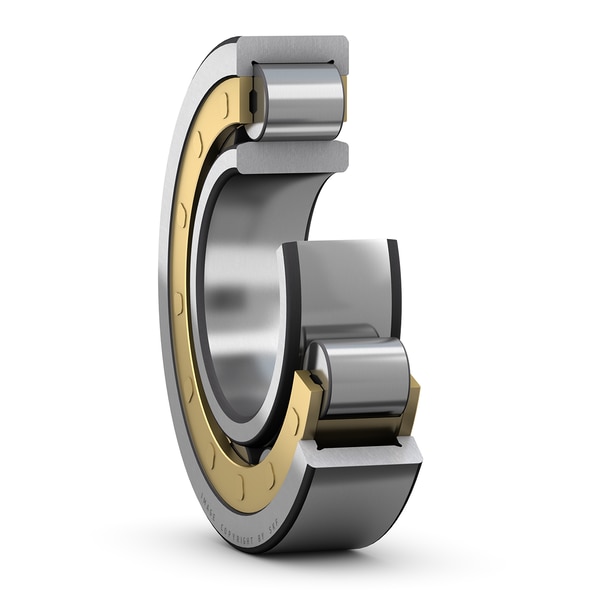

SKF NU 314 ECM
Single row cylindrical roller bearing, NU design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
70.0 mm
Bore diameter
D
150.0 mm
Outside diameter
B
35.0 mm
Width
D1
125.6 mm
Shoulder diameter of outer ring
F
89.0 mm
Raceway diameter of inner ring
r1,2
2.1 mm
Chamfer dimension
r3,4
2.1 mm
Chamfer dimension
s
1.8 mm
Permissible axial displacement
mass
3.17 kg
Product net weight
