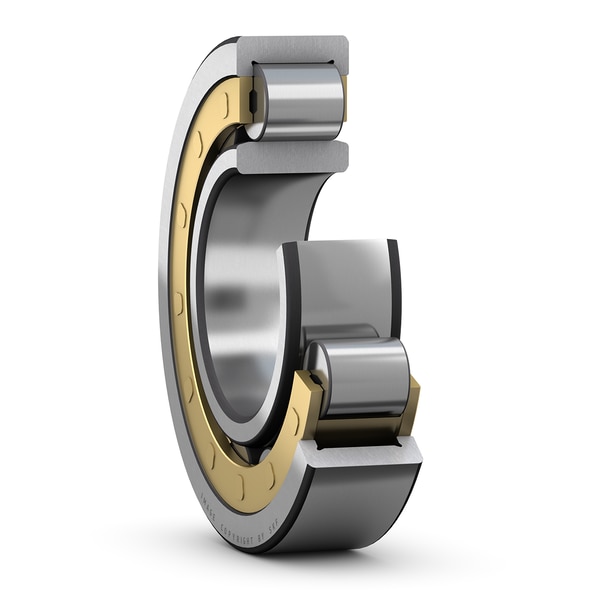

SKF NU 336 ECM
Single row cylindrical roller bearing, NU design
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
180.0 mm
Bore diameter
D
380.0 mm
Outside diameter
B
75.0 mm
Width
D1
318.85 mm
Shoulder diameter of outer ring
F
231.0 mm
Raceway diameter of inner ring
r1,2
4.0 mm
Chamfer dimension
r3,4
4.0 mm
Chamfer dimension
s
4.2 mm
Permissible axial displacement
mass
42.7 kg
Product net weight
