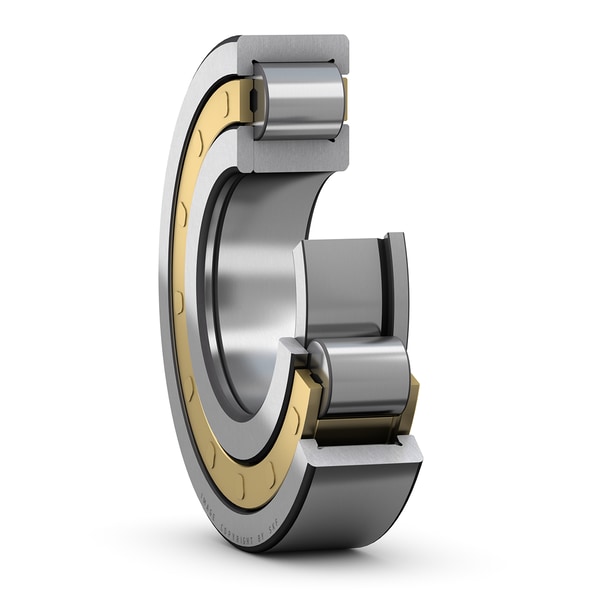

SKF NUP 218 ECM
Single row cylindrical roller bearing, NUP design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
90.0 mm
Bore diameter
D
160.0 mm
Outside diameter
B
30.0 mm
Width
d1
114.0 mm
Shoulder diameter of inner ring
D1
138.45 mm
Shoulder diameter of outer ring
F
107.0 mm
Raceway diameter of inner ring
r1,2
2.0 mm
Chamfer dimension
r3,4
2.0 mm
Chamfer dimension of loose flange ring
mass
2.77 kg
Product net weight
