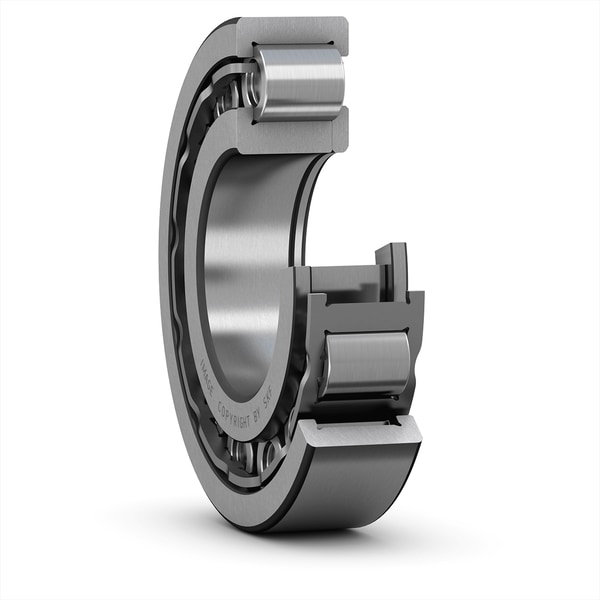

SKF NUP 2208 ECJ
Single row cylindrical roller bearing, NUP design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
40.0 mm
Bore diameter
D
80.0 mm
Outside diameter
B
23.0 mm
Width
d1
54.0 mm
Shoulder diameter of inner ring
D1
67.53 mm
Shoulder diameter of outer ring
F
49.5 mm
Raceway diameter of inner ring
r1,2
1.1 mm
Chamfer dimension
r3,4
1.1 mm
Chamfer dimension of loose flange ring
mass
0.517 kg
Product net weight
