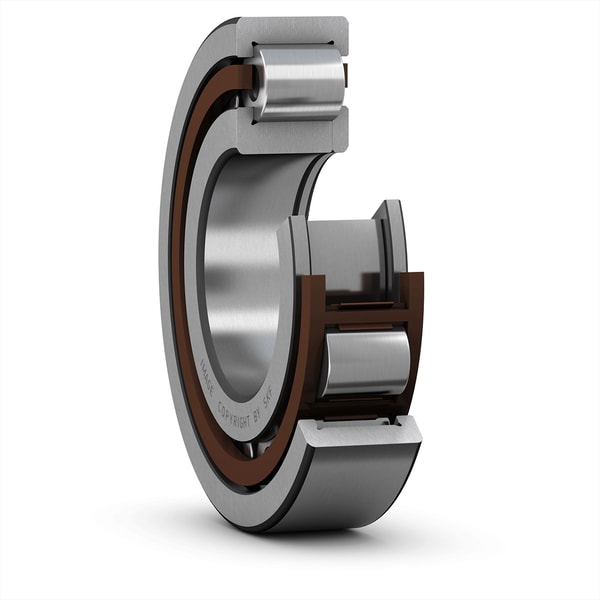

SKF NUP 2212 ECP
Single row cylindrical roller bearing, NUP design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
60.0 mm
Bore diameter
D
110.0 mm
Outside diameter
B
28.0 mm
Width
d1
77.5 mm
Shoulder diameter of inner ring
D1
95.1 mm
Shoulder diameter of outer ring
F
72.0 mm
Raceway diameter of inner ring
r1,2
1.5 mm
Chamfer dimension
r3,4
1.5 mm
Chamfer dimension of loose flange ring
mass
1.09 kg
Product net weight
