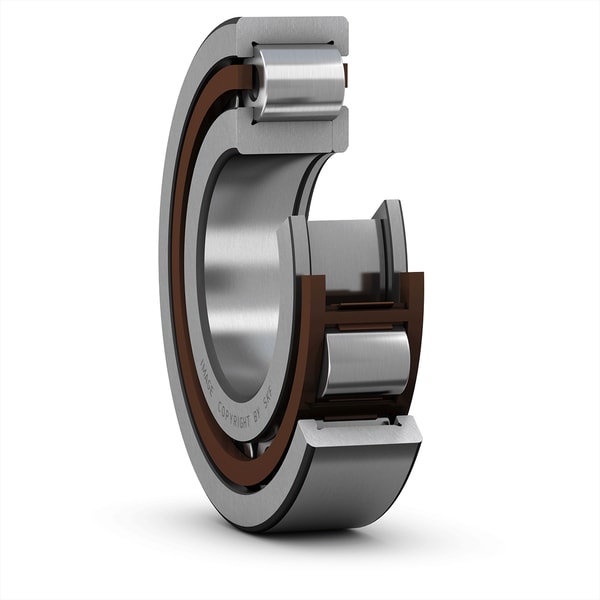

SKF NUP 2306 ECP
Single row cylindrical roller bearing, NUP design
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
30.0 mm
Bore diameter
D
72.0 mm
Outside diameter
B
27.0 mm
Width
d1
45.0 mm
Shoulder diameter of inner ring
D1
58.48 mm
Shoulder diameter of outer ring
F
40.5 mm
Raceway diameter of inner ring
r1,2
1.1 mm
Chamfer dimension
r3,4
1.1 mm
Chamfer dimension of loose flange ring
mass
0.551 kg
Product net weight
