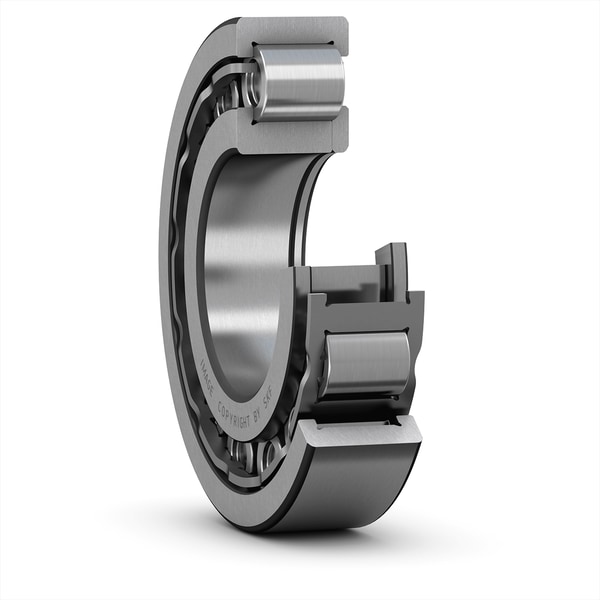

SKF NUP 322 ECJ
Single row cylindrical roller bearing, NUP design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
110.0 mm
Bore diameter
D
240.0 mm
Outside diameter
B
50.0 mm
Width
d1
155.0 mm
Shoulder diameter of inner ring
D1
200.05 mm
Shoulder diameter of outer ring
F
143.0 mm
Raceway diameter of inner ring
r1,2
3.0 mm
Chamfer dimension
r3,4
3.0 mm
Chamfer dimension of loose flange ring
mass
10.7 kg
Product net weight
