SKF NX 7 ZTN

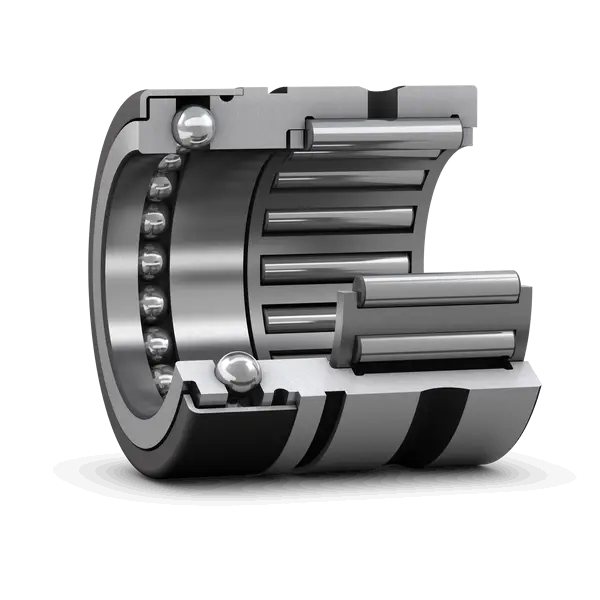

Combined needle roller / thrust ball bearing (full complement thrust part) with a cover
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
Fw
7.0 mm
Diameter under rollers
D
14.0 mm
Outside diameter
C
18.0 mm
Width
C1
4.7 mm
Distance side face to lubrication hole
d
7.0 mm
Bore diameter of thrust part
r1,2
0.3 mm
Chamfer dimension
mass
0.0118 kg
Product net weight
