SKF PA 12X20X4X6

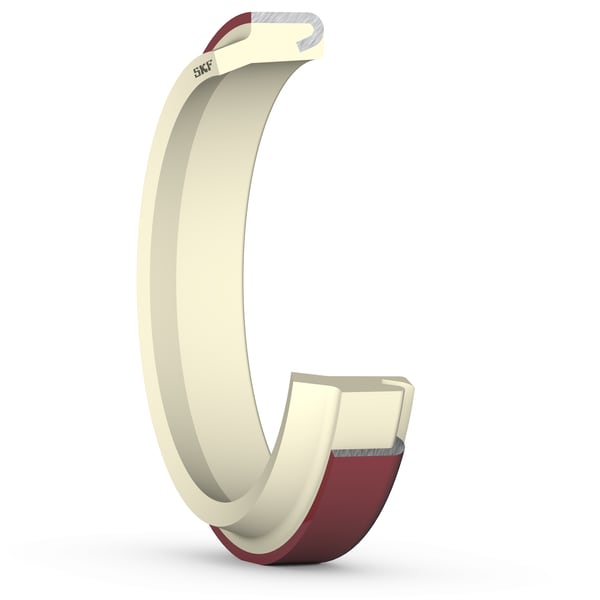

Polyurethane press-in wiper seal with a single protruding lip and a steel retaining ring
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
12.0 mm
Rod diameter
D
20.0 mm
Housing groove diameter
L
4.5 mm
Housing groove width
S
4.0 mm
Radial depth
R
0.8 mm
Groove radius
C
3.0 mm
Lead-in chamfer length on rod
C1
0.7 mm
Lead-in chamfer length in housing
C1
1.0 mm
Lead-in chamfer length in housing
H
4.0 mm
Seal width in housing
H2
6.0 mm
Total seal width
mass
0.0025 kg
Product net weight
