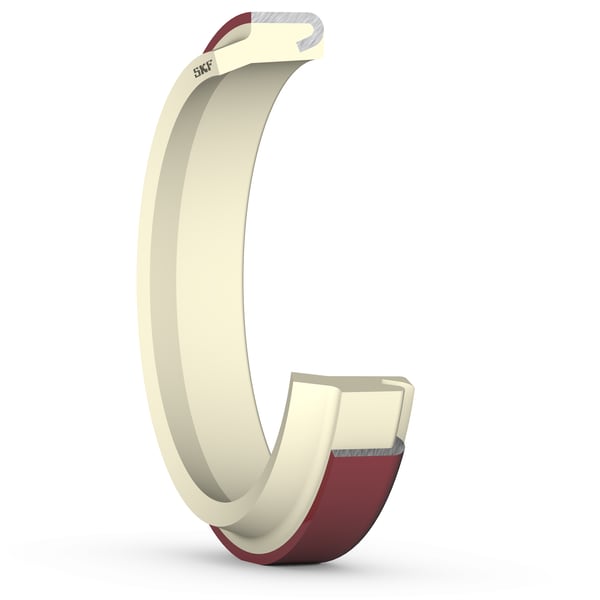

SKF PA 220X240X12X16
Polyurethane press-in wiper seal with a single protruding lip and a steel retaining ring
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
220.0 mm
Rod diameter
D
240.0 mm
Housing groove diameter
L
12.5 mm
Housing groove width
S
10.0 mm
Radial depth
C
7.0 mm
Lead-in chamfer length on rod
R
0.8 mm
Groove radius
C1
0.7 mm
Lead-in chamfer length in housing
C1
1.0 mm
Lead-in chamfer length in housing
H
12.0 mm
Seal width in housing
H2
16.0 mm
Total seal width
mass
0.19 kg
Product net weight
