SKF PAD 115X131X9X12

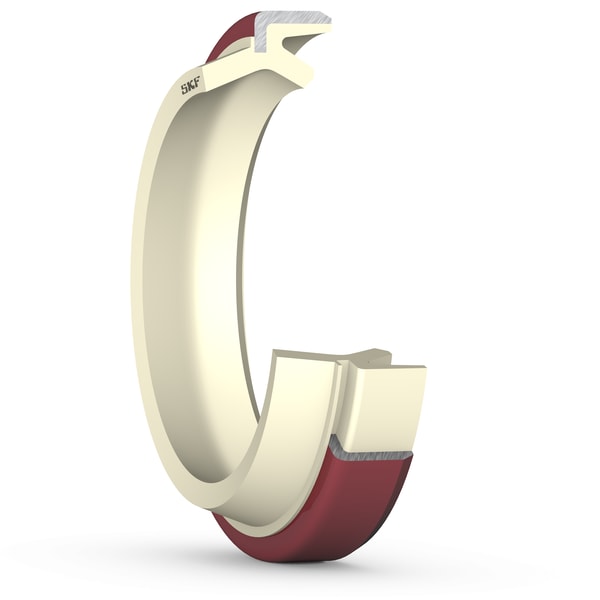

Polyurethane press-in wiper seal with double lips and a steel retaining ring
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
115.0 mm
Rod diameter
D
131.0 mm
Housing groove diameter
L
9.5 mm
Housing groove width
S
8.0 mm
Radial depth
C
7.0 mm
Lead-in chamfer length on rod
R
0.8 mm
Groove radius
C1
0.7 mm
Lead-in chamfer length in housing
C1
1.0 mm
Lead-in chamfer length in housing
H
9.0 mm
Seal width in housing
H2
12.0 mm
Total seal width
mass
0.059 kg
Product net weight
