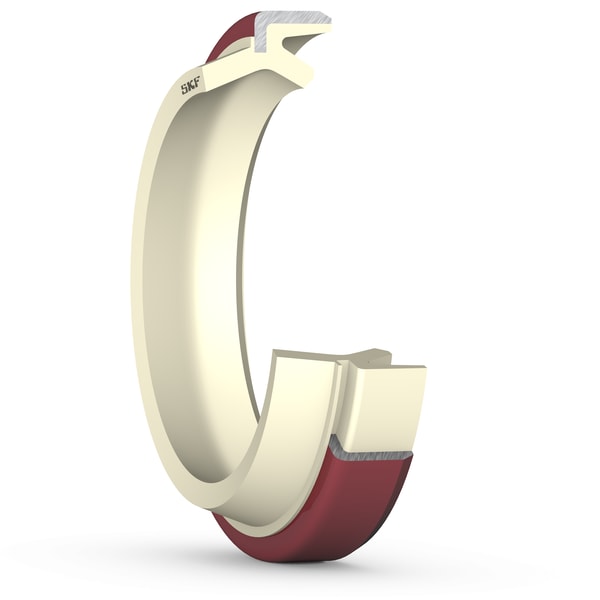

SKF PAD 35X47X7X10
Polyurethane press-in wiper seal with double lips and a steel retaining ring
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
35.0 mm
Rod diameter
D
47.0 mm
Housing groove diameter
L
7.5 mm
Housing groove width
S
6.0 mm
Radial depth
R
0.8 mm
Groove radius
C
4.0 mm
Lead-in chamfer length on rod
C1
0.7 mm
Lead-in chamfer length in housing
C1
1.0 mm
Lead-in chamfer length in housing
H
7.0 mm
Seal width in housing
H2
10.0 mm
Total seal width
mass
0.012 kg
Product net weight
