SKF PADV 40X52X7X10

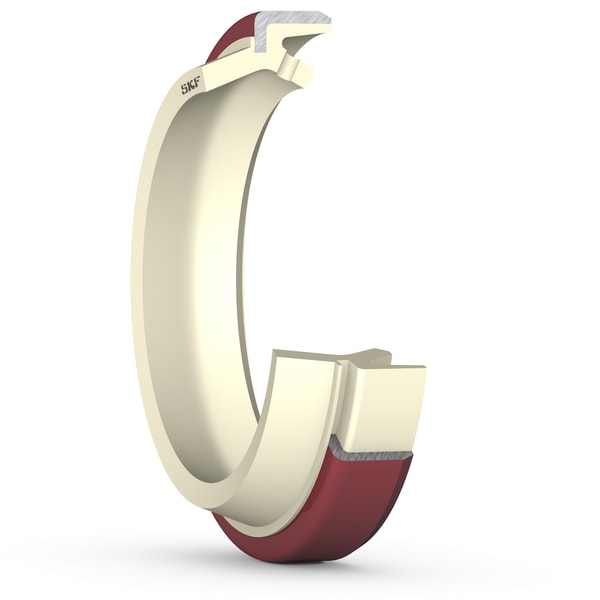

Polyurethane press-in wiper seal with double lips, a vent hole and a steel retaining ring
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
40.0 mm
Rod diameter
D
52.0 mm
Housing groove diameter
L
7.5 mm
Housing groove width
S
6.0 mm
Radial depth
C
4.0 mm
Lead-in chamfer length on rod
R
0.8 mm
Groove radius
C1
0.7 mm
Lead-in chamfer length in housing
C1
1.0 mm
Lead-in chamfer length in housing
H
7.0 mm
Seal width in housing
H2
10.0 mm
Total seal width
mass
0.0151 kg
Product net weight
