SKF PADV 55X69X8X11

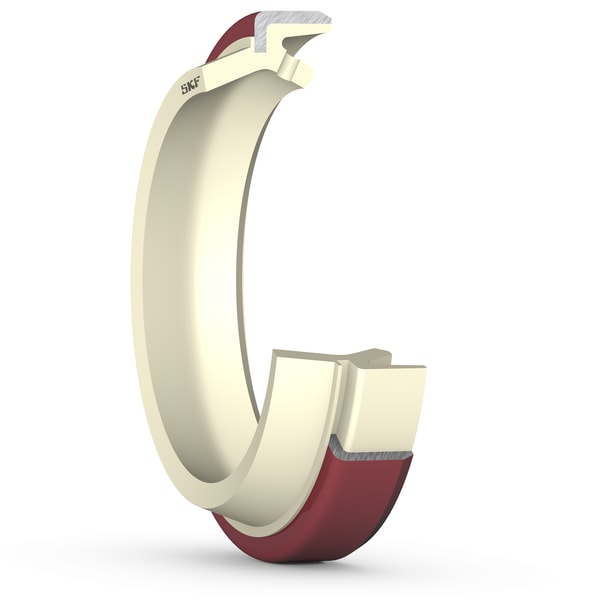

Polyurethane press-in wiper seal with double lips, a vent hole and a steel retaining ring
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
55.0 mm
Rod diameter
D
69.0 mm
Housing groove diameter
L
8.5 mm
Housing groove width
S
7.0 mm
Radial depth
R
0.8 mm
Groove radius
C
5.0 mm
Lead-in chamfer length on rod
C1
0.7 mm
Lead-in chamfer length in housing
C1
1.0 mm
Lead-in chamfer length in housing
H
8.0 mm
Seal width in housing
H2
11.0 mm
Total seal width
mass
0.024 kg
Product net weight
