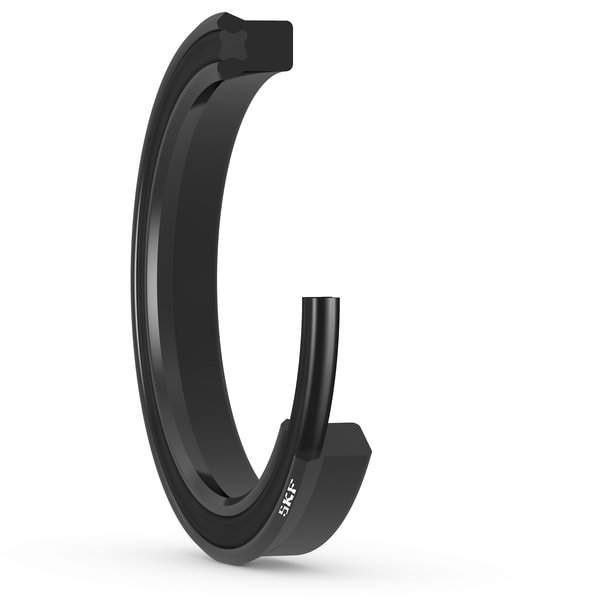

SKF PTB406-8500-500-J1S
Symmetric hydraulic rod seal, with energizer
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
215.9 mm
Rod diameter
D
236.52 mm
Housing groove diameter
L
13.97 mm
Housing groove width
S
10.31 mm
Radial depth
R
0.76 mm
Groove radius
C
12.7 mm
Lead-in chamfer length
mass
0.111 kg
Product net weight
