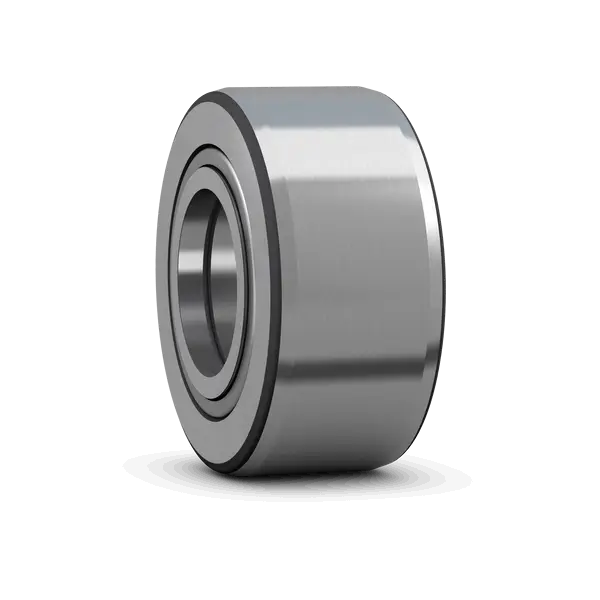

SKF PWTR 2562.2RS
Support roller (yoke-type track roller) with flange rings, integral sealing and relubrication feature
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
D
62.0 mm
Outside diameter
d
25.0 mm
Bore diameter
C
24.0 mm
Width outer ring
B
25.0 mm
Width inner ring
d1
31.0 mm
Outside diameter flange ring
r1,2
1.0 mm
Chamfer dimension outer ring
r3,4
0.5 mm
Chamfer dimension flange ring bore
mass
0.442 kg
Product net weight
