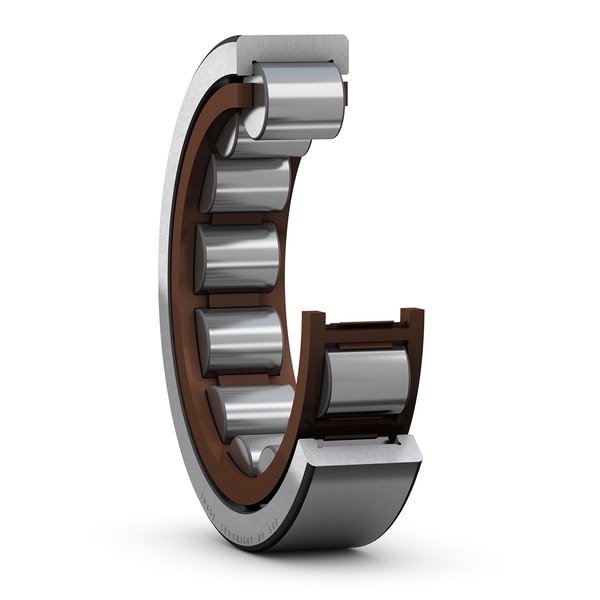

SKF RNU 309 ECP
Single row cylindrical roller bearing, NU design, without inner ring
(BRAND)：SKF
(Availability)：In Stock
Dimensions
Fw
58.5 mm
Diameter under rollers
D
100.0 mm
Outside diameter
C
25.0 mm
Width
D1
83.2 mm
Shoulder diameter outer ring
r1,2
1.5 mm
Corner radius
mass
0.68 kg
Product net weight
