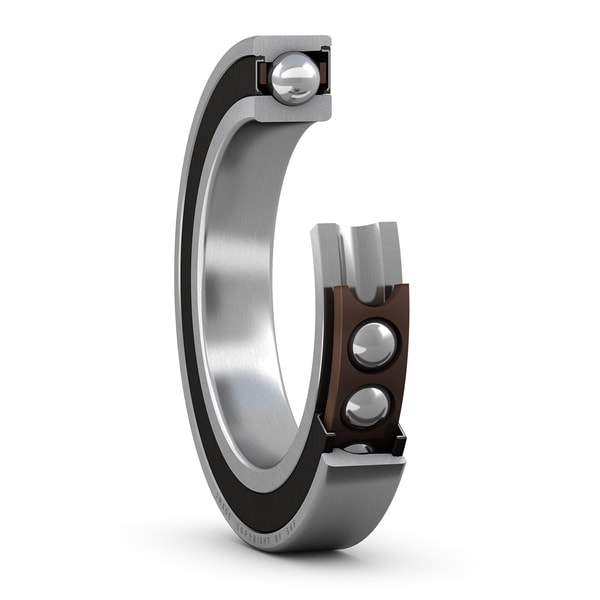

SKF S7003 ACDGA/P4A
Super-precision, high-capacity, universally matchable single row angular contact ball bearing with seals
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
17.0 mm
Bore diameter
D
35.0 mm
Outside diameter
B
10.0 mm
Width
d1
22.6 mm
Shoulder diameter of inner ring (large side face)
d2
22.6 mm
Shoulder diameter of inner ring (small side face)
D2
32.7 mm
Recess diameter of outer ring (large side face)
r1,2
0.3 mm
Chamfer dimension
r3,4
0.2 mm
Chamfer dimension
a
11.2 mm
Distance from side face to pressure point
mass
0.038 kg
Product net weight
Abutment dimensions
da
19.0 mm
Diameter of shaft abutment
da
22.2 mm
Diameter of shaft abutment
db
19.0 mm
Diameter of shaft abutment
db
22.2 mm
Diameter of shaft abutment
Da
33.0 mm
Diameter of housing abutment
Db
33.6 mm
Diameter of housing abutment
ra
0.3 mm
Radius of fillet
rb
0.2 mm
Radius of fillet
