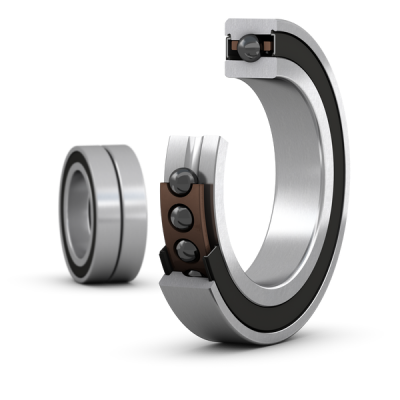

SKF S7004 CE/HCP4ADT
Matched set of two super-precision, high-speed E design, single row angular contact ball bearings with seals
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
20.0 mm
Bore diameter
D
42.0 mm
Outside diameter
B
24.0 mm
Width
d1
26.6 mm
Shoulder diameter of inner ring (large side face)
d2
24.8 mm
Shoulder diameter of inner ring (small side face)
D2
36.5 mm
Recess diameter of outer ring (large side face)
D4
38.4 mm
Recess diameter outer ring shoulder (small side face)
r1,2
0.6 mm
Chamfer dimension
r3,4
0.3 mm
Chamfer dimension
mass
0.119 kg
Product net weight
Abutment dimensions
da
22.0 mm
Diameter of shaft abutment
da
26.2 mm
Diameter of shaft abutment
db
22.0 mm
Diameter of shaft abutment
db
24.4 mm
Diameter of shaft abutment
Da
40.0 mm
Diameter of housing abutment
Db
39.6 mm
Diameter of housing abutment
ra
0.6 mm
Radius of fillet
rb
0.3 mm
Radius of fillet
